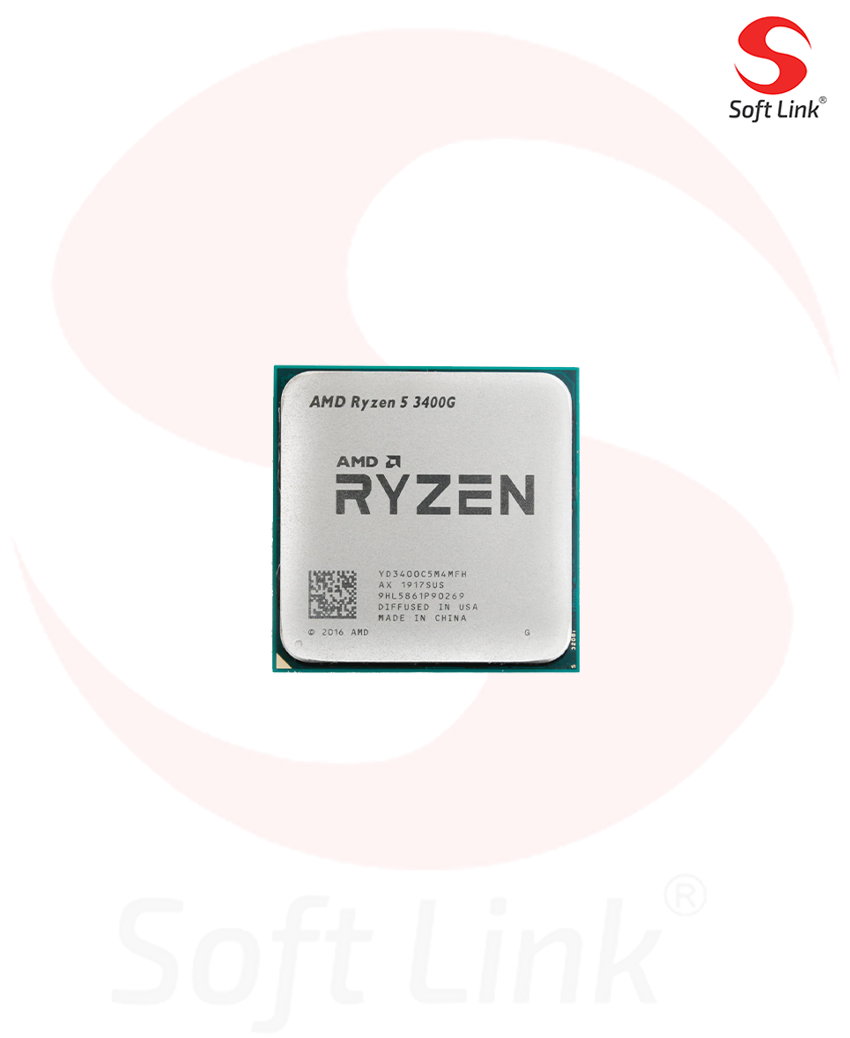

NameAMD Ryzen™ 5 3400G with Radeon™ RX Vega 11 Graphics
FamilyRyzenSeriesRyzen 3000 SeriesForm FactorDesktops , Boxed ProcessorMarket SegmentMainstream DesktopRegional AvailabilityGlobal , China , NA , EMEA , APJ , LATAMFormer CodenamePicassoProcessor ArchitectureZen+# of CPU Cores4Multithreading (SMT)Yes# of Threads8Max. Boost Clock Up to 4.2 GHzBase Clock 3.7 GHzL1 Cache384 KBL2 Cache2 MBL3 Cache4 MBDefault TDP65WAMD Configurable TDP (cTDP)45-65WProcessor Technology for CPU Cores12nm FinFETCPU Compute Die (CCD) Size210mm²Package Die Count1Total Transistor Count4.94 BillionUnlocked for Overclocking YesCPU SocketAM4Supporting ChipsetsX570 , X470 , X370 , B450 , B350 , A320CPU Boost TechnologyPrecision Boost 2Instruction Setx86-64Supported ExtensionsAES , AMD-V , AVX , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64Max. Operating Temperature (Tjmax)95°CLaunch Date07/07/2019*OS SupportWindows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
New
AMD Ryzen 5 3400G Tray
Graphics ModelRadeon™ RX Vega 11 Graphics
Graphics Core Count11
Total Graphics Shaders704
Graphics Frequency1400 MHz
GPU Max. Memory2 GB
WDDM Version2.7
DirectX® Version12
OpenGL®4.6
OpenCL™2.2
DisplayPort™ Version1.4a
DisplayPort ExtensionsAdaptive-Sync , HBR3 , HDR Metadata
DisplayPort Max Refresh Rates (SDR)3840×2160 @ 60Hz , 3440×1440 @ 144Hz , 2560×1440 @ 180Hz , 1920×1080 @ 240Hz
DisplayPort Max Refresh Rates (HDR)3840×2160 @ 60Hz , 3440×1440 @ 60Hz , 2560×1440 @ 60Hz , 1920×1080 @ 120Hz
HDMI® Version2.0
HDCP Version Supported2.2
USB Type-C® DisplayPort™ Alternate ModeYes
Multi-Monitor SupportYes
Max Displays3
AMD FreeSync™Yes
AMD Eyefinity Single Large Surface (SLS)No
Wireless DisplayMiracast
Max Video Encode Bandwidth (SDR)1080p205 8bpc H.264, 1440p115 8bpc H.264, 2160p51 8bpc H.264, 1080p205 8bpc H.265, 1440p115 8bpc H.265, 2160p51 8bpc H.265
Max Video Decode Bandwidth1080p60 MPEG2, 1080p60 VC1, 1080p240 8bpc VP9, 1080p240 10bpc VP9, 1080p240 H.264, 1080p240 8bpc H.265, 1080p240 10bpc H.265, 1080p240 JPEG 8bpc
3,499 EGP
