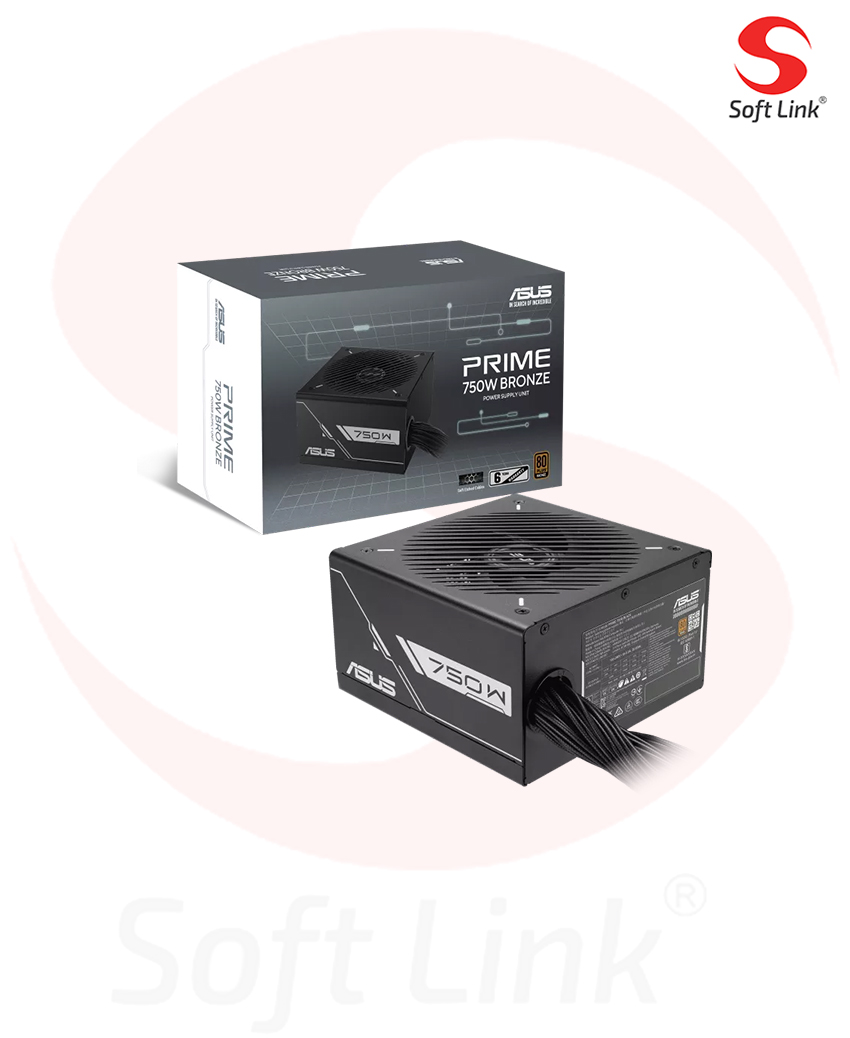

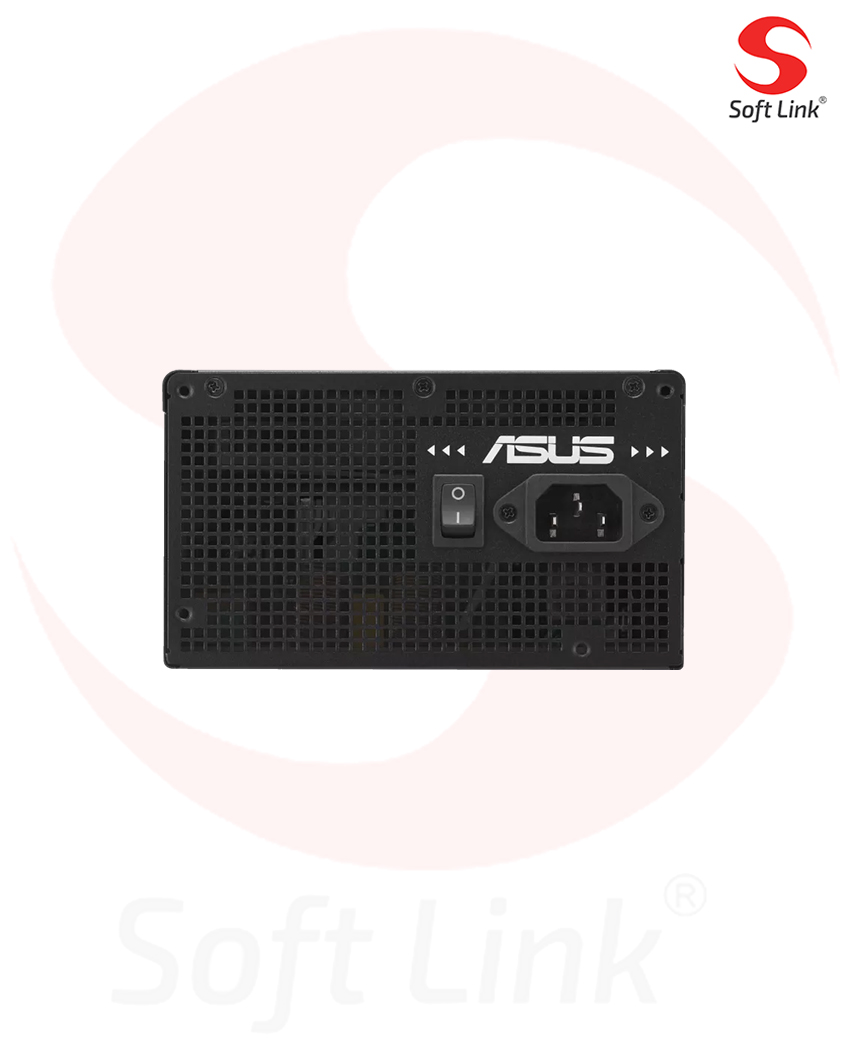

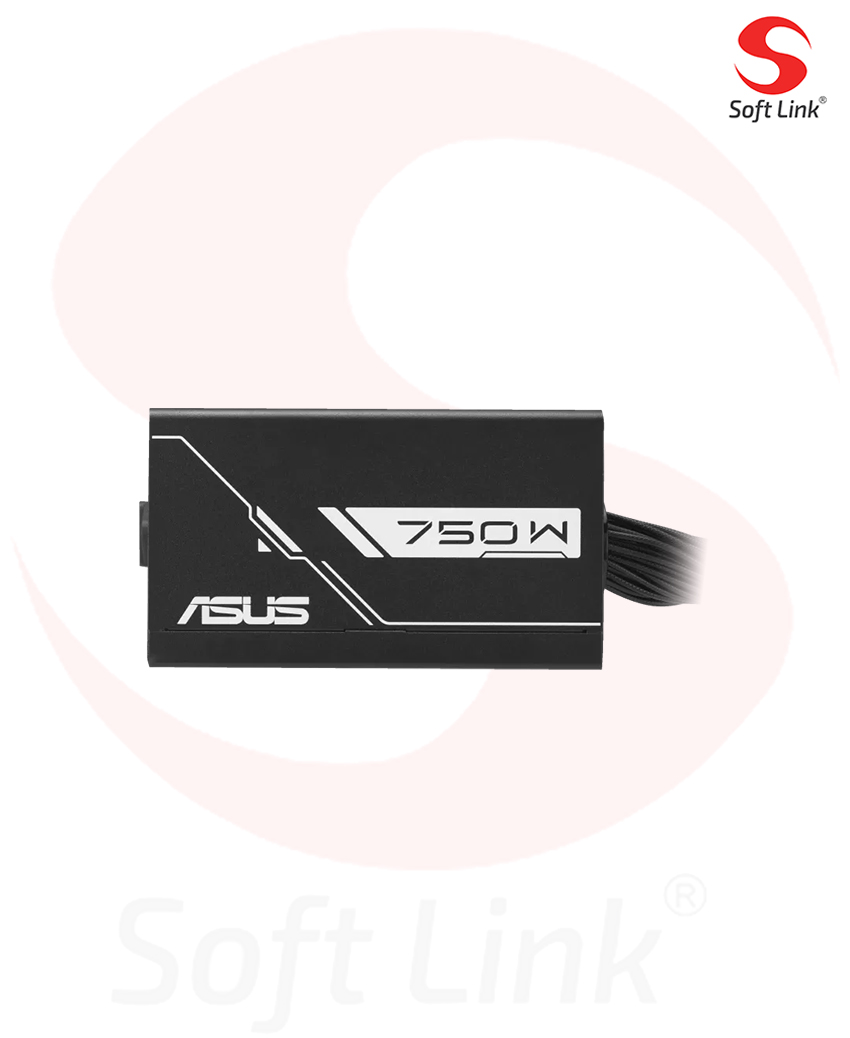

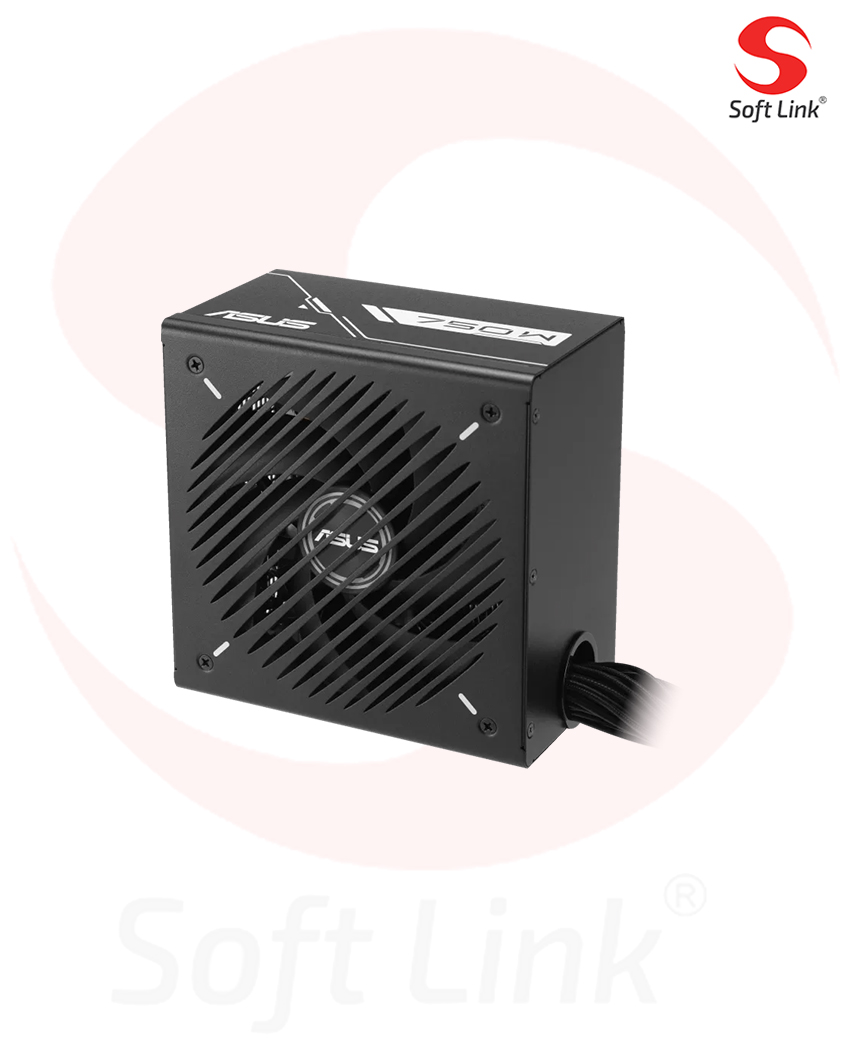

ASUS PRIME 750W 80+ Bronze PSU – Black
Model
PRIME-750B-BLACK
Intel Form Factor
ATX12V
PFC Type
Active PFC
Dimensions
150 x 150 x 86 mm
Efficiency
80Plus Bronze
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
20A 20A 62.5A 0.3A 2.5A
Combined Load
120W 120W 750W 3.6W 12.5W
Total Output
750W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 8-pin x 3
SATA x 6
PERIPHERAL x 3
CPU 4+4-pin x 2
PCI-E 8-pin x 3
SATA x 6
PERIPHERAL x 3
Package Contents
Power Cord x 1
Motherboard Power cable x 1 (600mm)
CPU cable x 2 (800mm)
PCI-E 1-to-2 x 1 (600mm)
PCI-E 1-to-1 x 1 (600mm)
SATA 1-to-3 cable x 2 (400+120+120+mm)
Peripheral 1-to-3 cable x 1 (400+120+120mm)
User Manual x 1
Motherboard Power cable x 1 (600mm)
CPU cable x 2 (800mm)
PCI-E 1-to-2 x 1 (600mm)
PCI-E 1-to-1 x 1 (600mm)
SATA 1-to-3 cable x 2 (400+120+120+mm)
Peripheral 1-to-3 cable x 1 (400+120+120mm)
User Manual x 1
Weight
Single PSU : 2.2KG
Product Weight (with packing) : 3.067KG
Product Weight (with packing) : 3.067KG
0dB Technology
No
