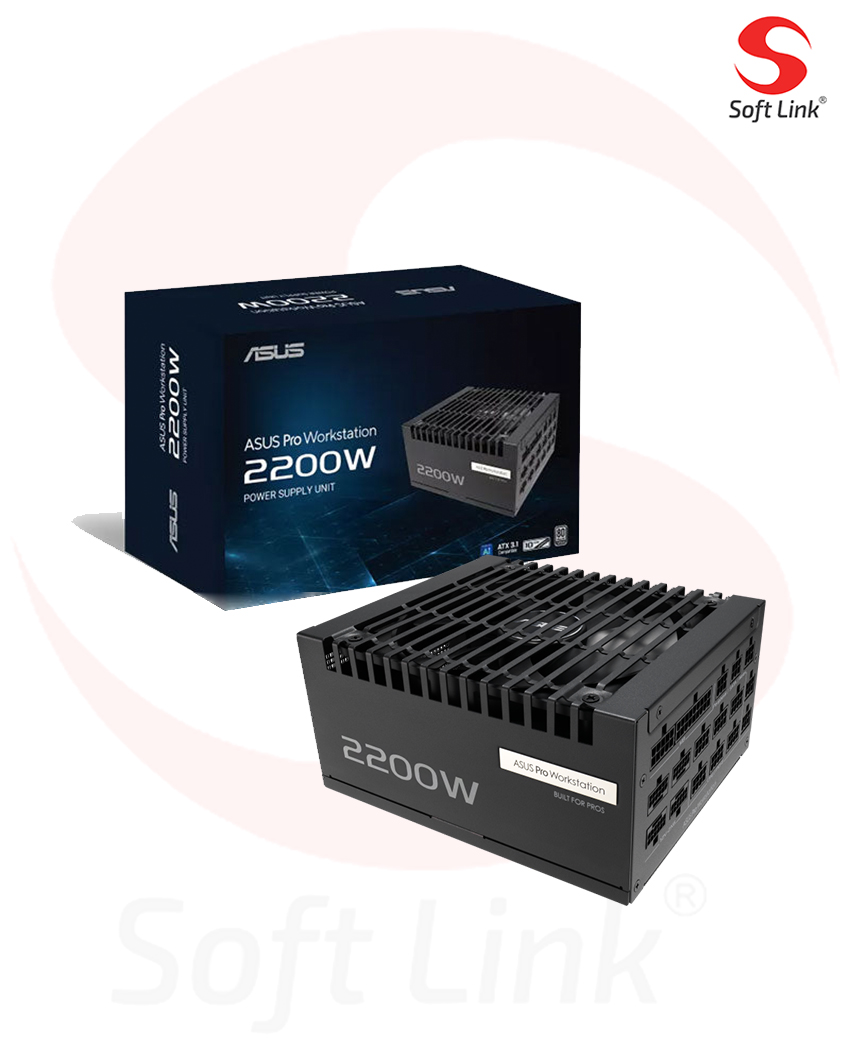

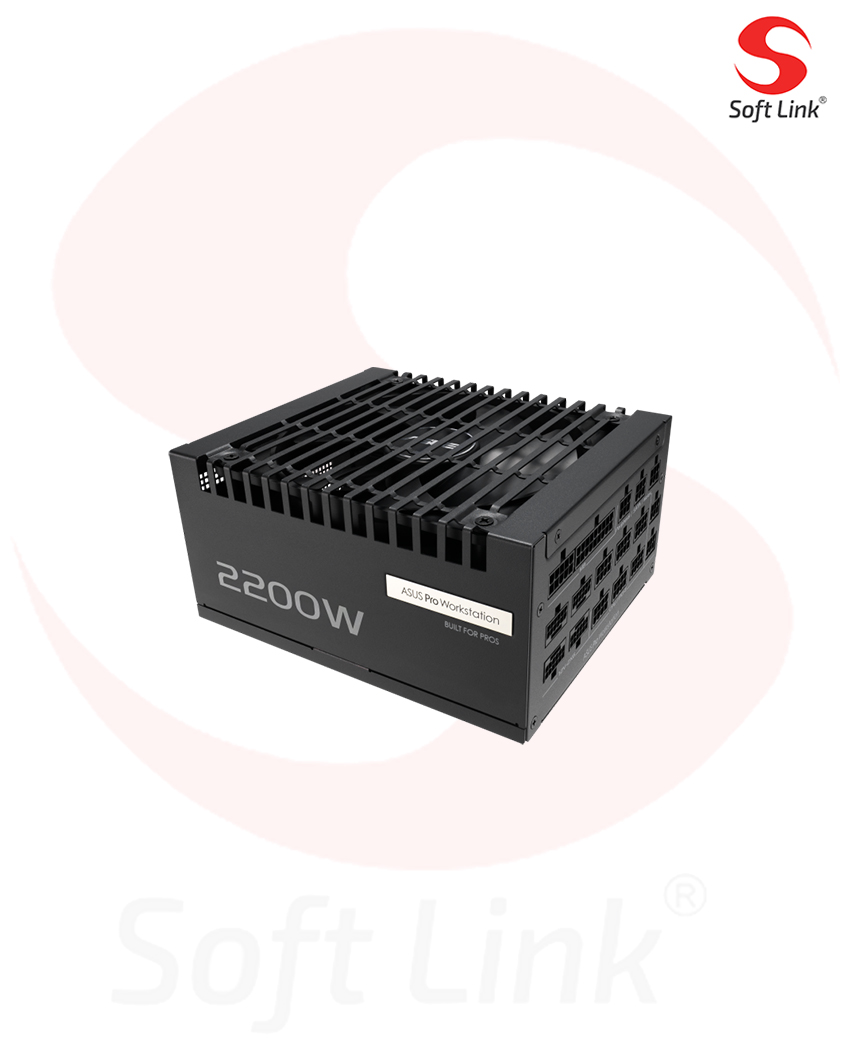

ASUS Pro WS 2200W Platinum

ASUS Pro WS 2200W Platinum PSU delivers exceptional voltage stability and advanced power delivery for professionals, supporting up to four graphics cards to meet the demanding AI workloads.

Heavy-duty PSU: Supports up to four GeForce RTX™ 5080 graphics cards via rock-solid voltage stability and advanced power delivery.
Dual-ball fan bearings: Designed to last up to twice as long as sleeve-bearing designs.
Extruded aluminum heatsinks: Cover critical components, delivering lower temperatures and noise versus reference designs.
ATX 3.1 compatible: Compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation.
PCIe^® 5.1 ready: Features native 12V-2×6 connectors for cutting-edge graphics card power.
80 PLUS Platinum certified: Utilizes low-ESR Japanese server grade capacitors and premium components for industry-leading power efficiency.
10-year warranty: Provides confidence in long-term reliability.

29,999 EGP

Add to compare

Add to wishlist

13 People watching this product now!

Description

ASUS Pro WS 2200W Platinum

Model

ASUS-PRO-WS-2200P

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

80 PLUS Efficiency

80Plus Platinum

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

200-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A 25A 183.3A 0.8A 3A

Combined Load

130W 130W 2200W 9.6W 15W

Total Output

2200W

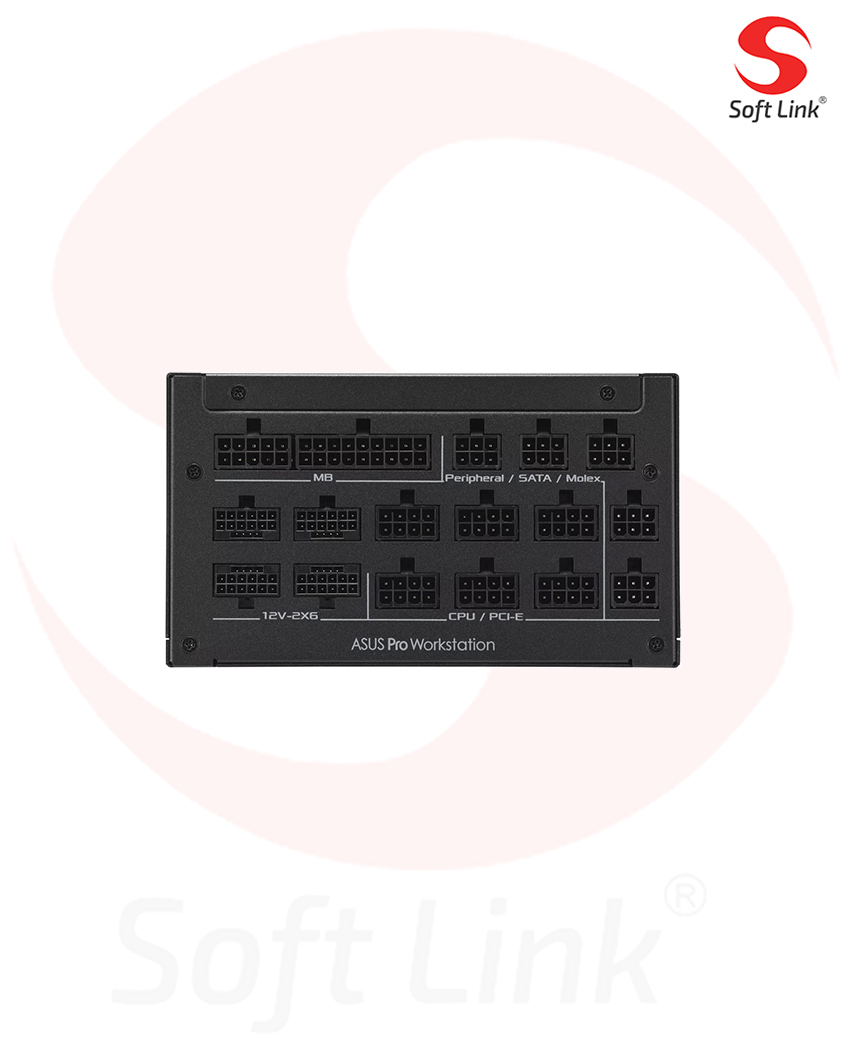

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCIE 5.1 16-pin x 4
PCIE 6+2-pin x 4
SATA x 12
PERIPHERAL x 3

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 16-pin Cable x 4 (750mm)
PCI-E 1-to-1 Cable x 4 (750mm)
SATA 1-to-3 Cable x 4 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
Chassis Screws Package x 1
Cable Tie x 6
User Manual x 1

Dimensions

175 x 150 x 86 mm

Weight

2.13 kg (single PSU)

AURA SYNC

0dB Fan Button

No, this product is without 0dB technology.
