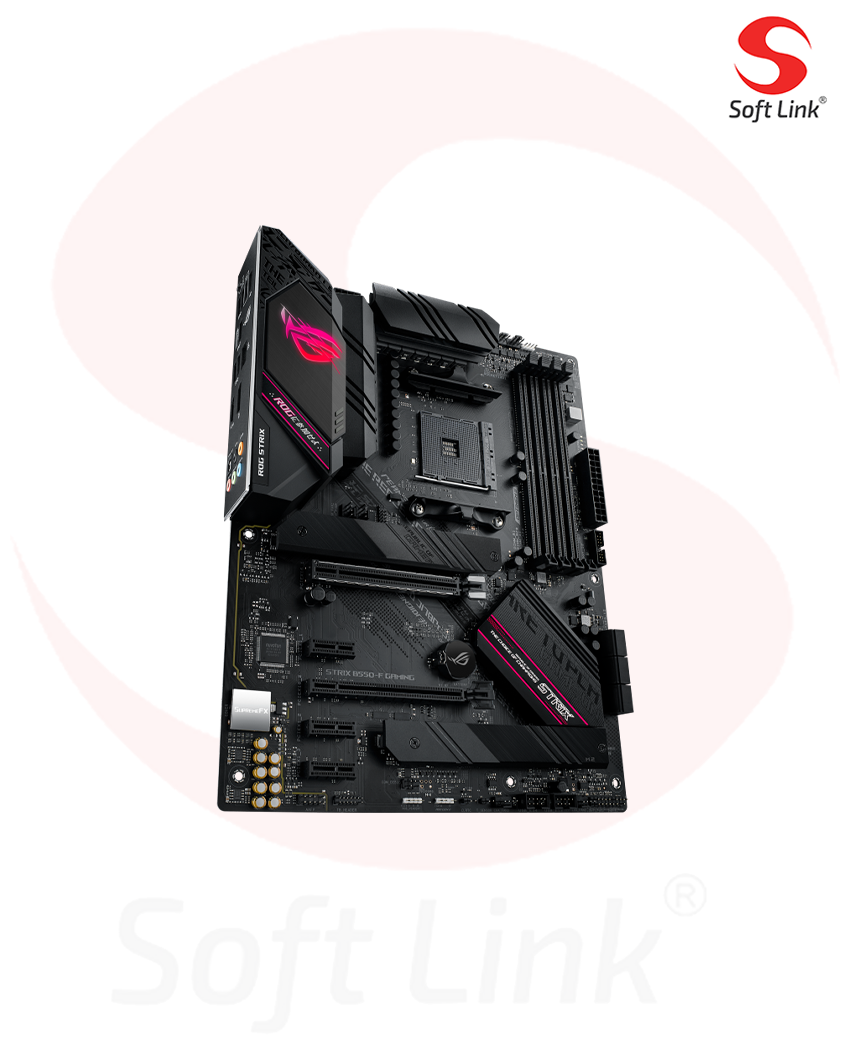

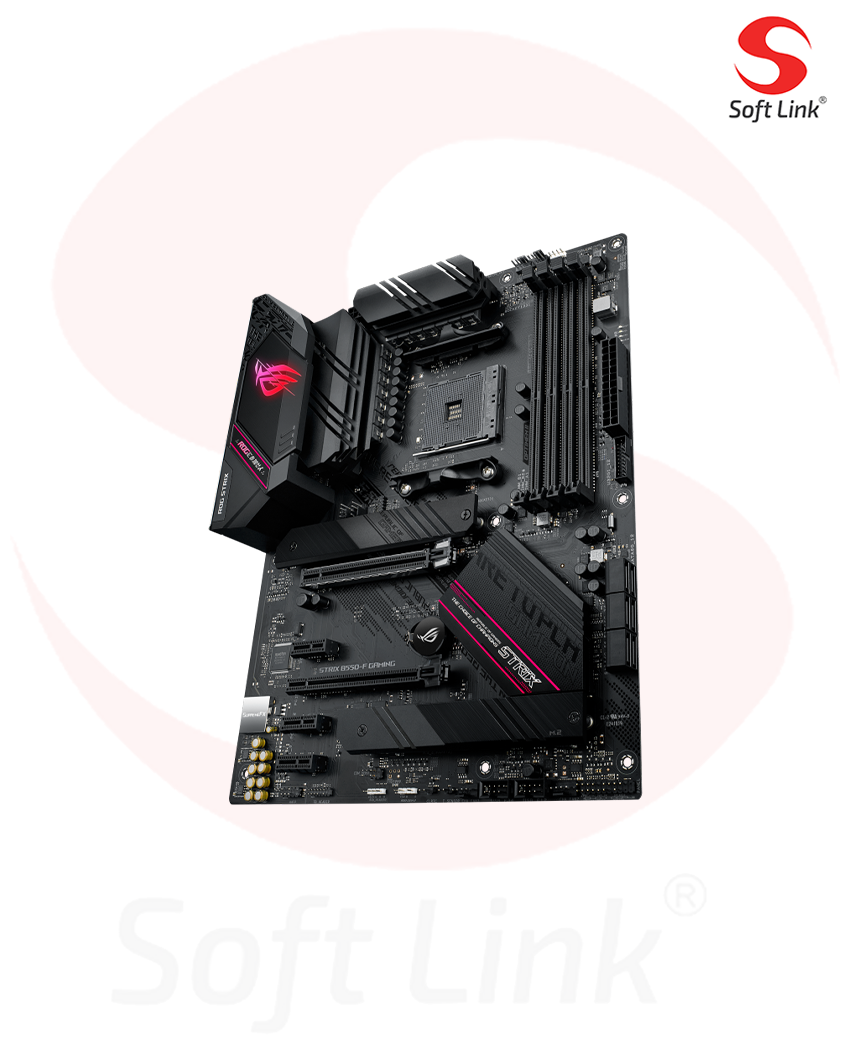

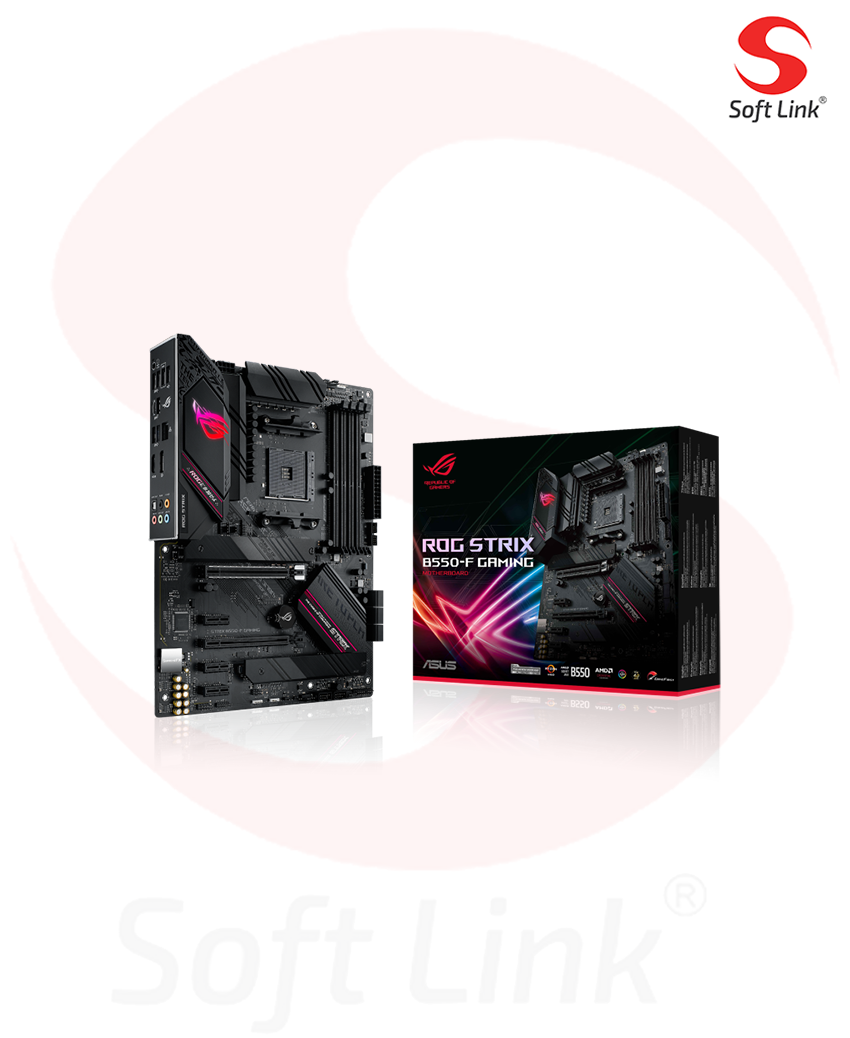

ASUS ROG STRIX B550-F GAMING

3rd Gen AMD Ryzen™ Processors

4 x DIMM, Max. 128GB, 4400(O.C)/4266(O.C)/4133(O.C)/4000(O.C)/3866(O.C)/3600(O.C)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory*

Dual channel memory architecture

OptiMem II

*ECC memory(ECC mode) support varies by CPU.

*Refer to www.asus.com for the Memory QVL (Qualified Vendors List).

1 x DisplayPort 1.2

1 x HDMI^TM 2.1 (4K@60HZ)

*Graphics specifications may vary between CPU types.

AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors

1 x PCIe 4.0 x16 SafeSlot (supports x16 mode)

AMD B550 chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)*

3 x PCIe 3.0 x1

*Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3

AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

AMD B550 Chipset:

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*

6 x SATA 6Gb/s ports

Support RAID 0, 1, 10

* When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled.

2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x Type-C^®)

4 x USB 3.2 Gen 1 port(s) (4 x Type-A)

2 x USB 2.0 port(s)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

– Impedance sense for front and rear headphone outputs

– Jack-detection, Multi-streaming, Front Panel Jack-retasking

– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

– Supports up to 32-Bit/192kHz playback*

Audio Features

– SupremeFX Shielding Technology

– Dual OP Amplifiers

– Premium audio capacitors

– Audio cover

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 8-Channel audio.

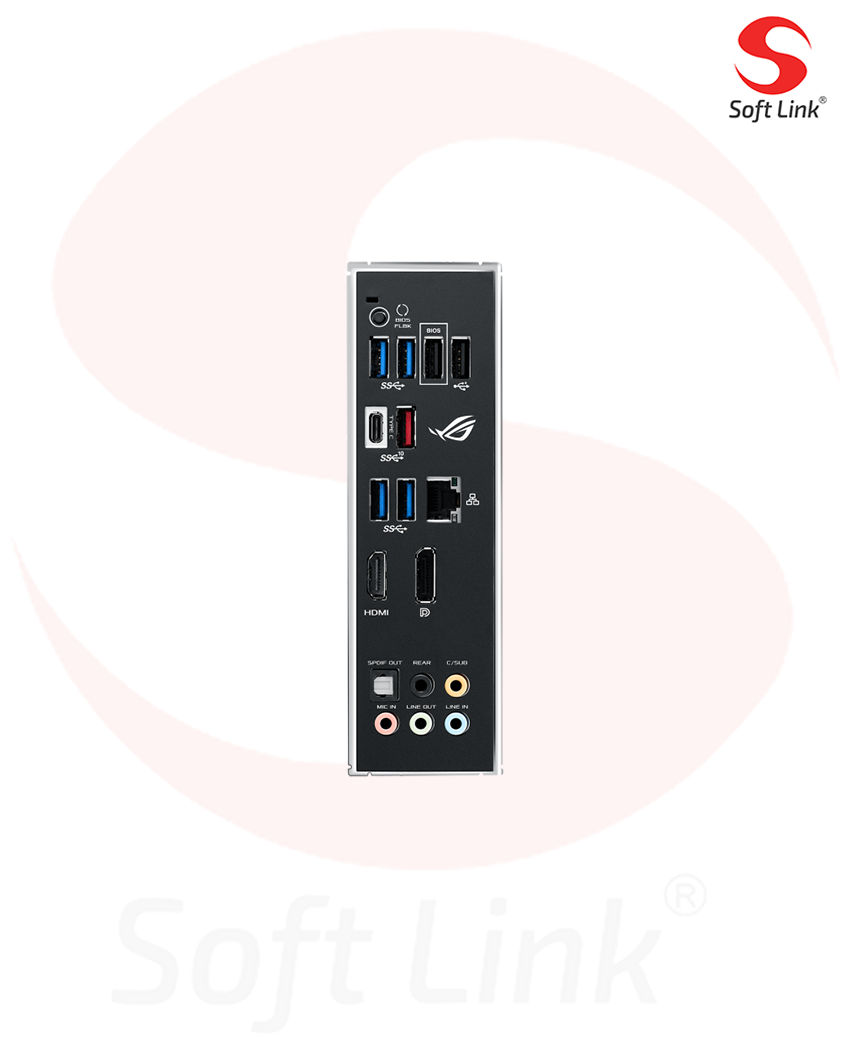

5 x Audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBackTM button
1 x DisplayPort
1 x HDMITM port

1 x Intel^® I225-V 2.5G Ethernet
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C^®)
4 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)

Fan and cooling related

1 x 4-Pin AIO_Pump header

1 x 4-Pin CPU fan header

1 x 4-Pin CPU_OPT fan header

3 x 4-Pin Chassis fan headers

Power related

1 x 24-pin main power connector

1 x 8-pin +12V power connector

1 x 4-pin +12V power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB ports

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x AURA addressable Gen 2 header

2 x AURA RGB headers

1 x Clear CMOS header

1 x Front panel audio header (AAFP)

1 x 20-3 pin System Panel header

1 x Thermal sensor header

1 x Thunderbolt header

Aura Sync

– Standard RGB header(s)

– Addressable Gen 2 RGB header(s)

ASUS Q-Design

– ASUS Q-DIMM

– ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)

– ASUS Q-Slot

ASUS Thermal Solution

– Aluminum M.2 heatsink

ASUS EZ DIY

– BIOS Flashback™ button

– BIOS FlashBack™ LED

– Clear CMOS header

– Procool

– Pre-mounted I/O shield

– SafeSlot

ROG Exclusive Software

– RAMCache III

– ROG CPU-Z

– GameFirst VI

– Sonic Studio III + Sonic Studio Virtual Mixer

– Sonic Radar III

– DTS^® Sound Unbound

– Overwolf

– Anti-virus software

ASUS Exclusive Software Features

Armoury Crate

– Aura Creator

– Aura Sync

– AI Noise Cancelling Microphone

AI Suite 3:

– PPSU

EPU

DIGI+ VRM

Fan Xpert 4

TurboV EVO

– EZ update

WinRAR

UEFI BIOS

ASUS EZ DIY

– ASUS CrashFree BIOS 3

– ASUS EZ Flash 3

– ASUS UEFI BIOS EZ Mode

Cables

1 x Addressable RGB extension cable

4 x SATA 6Gb/s cables

Miscellaneous

1 x Cable ties pack

1 x M.2 Rubber Package

1 x M.2 SSD screw package

1 x ROG STRIX sticker

1 x ROG STRIX thank you card

Installation Media

1 x Supporting DVD

Documentation

1 x User manual
