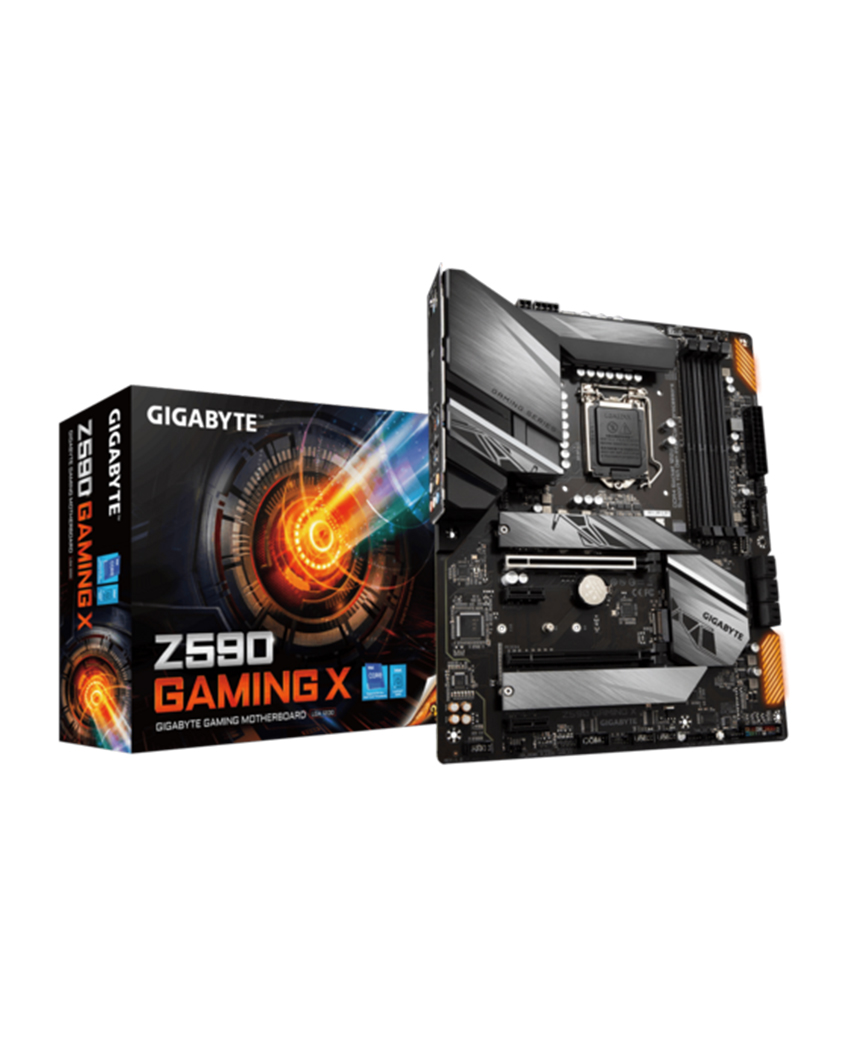

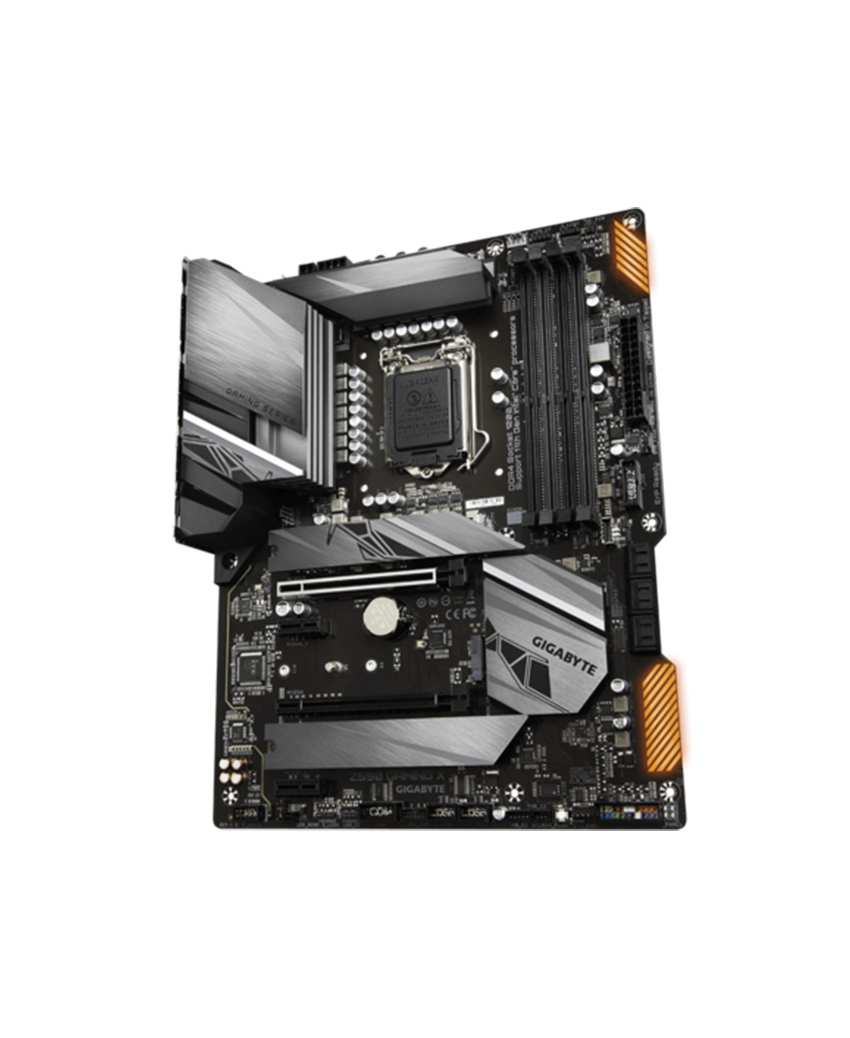

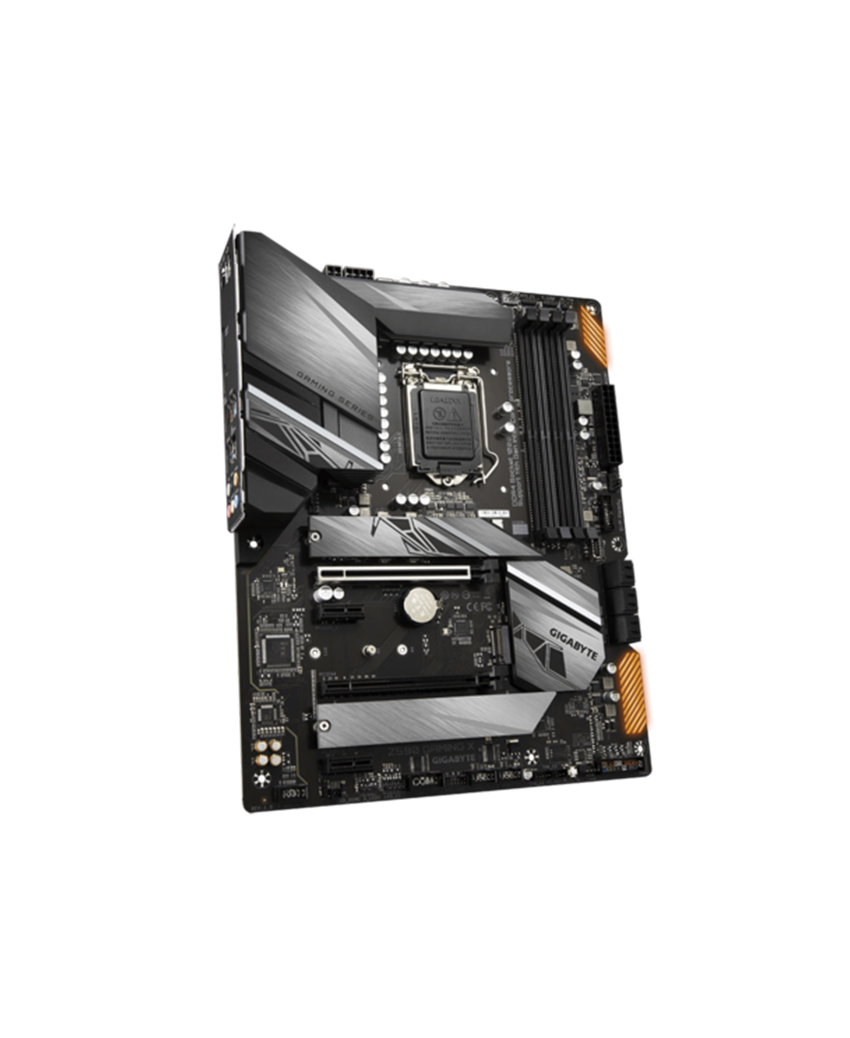

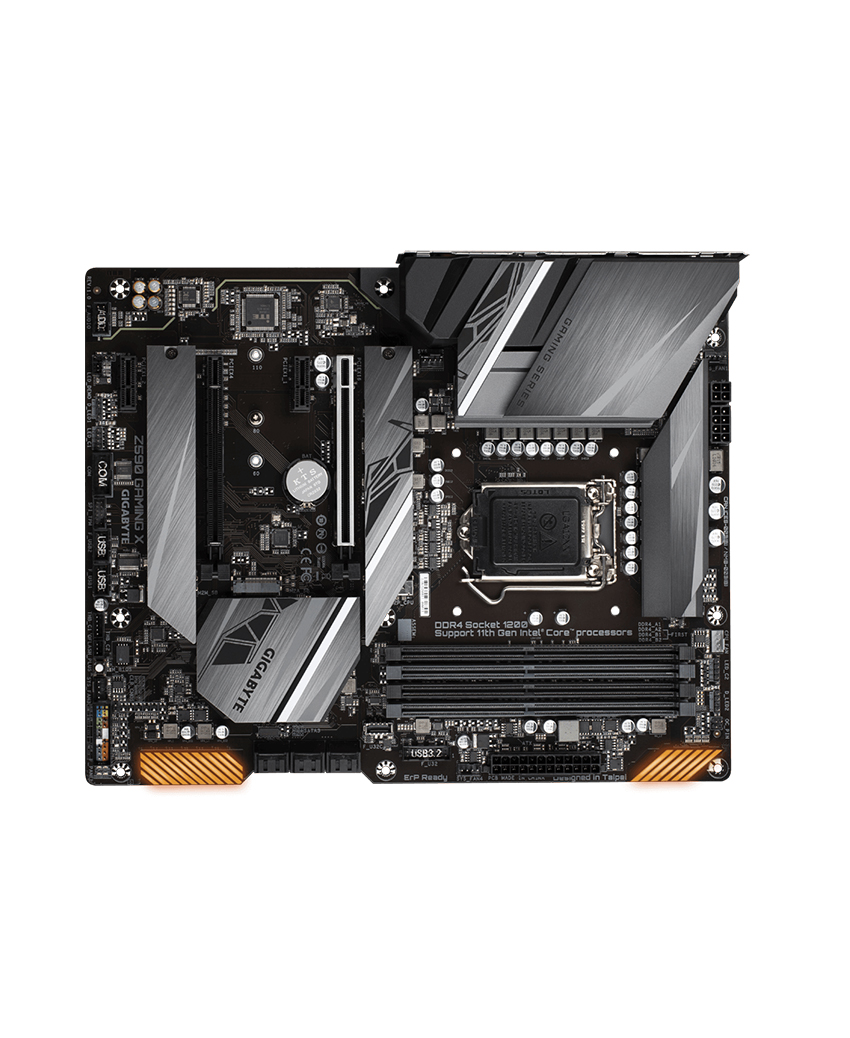

Z590 GAMING X

CPU
Chipset Intel Z590
CPU Socket LGA 1200
Back Panel I/O
USB 1 x USB 3.1 / USB 3.2 Gen 2 Type-C
1 x USB 3.1 / USB 3.2 Gen 2 Type-A
5 x USB 3.1 / USB 3.2 Gen 1 Type-A
2 x USB 2.0 Type-A
Thunderbolt None
Display 1 x DisplayPort
Audio 6 x 3.5 mm
Ethernet / Controller 1 x Realtek 2.5Gigabit
PS/2 1 x Combo
Memory
Memory Slots 4 x 288-Pin
Memory Support DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000, 5133, 5333 MHz
Maximum Capacity 128 GB
Channel Architecture Dual Channel
ECC Support Non-ECC, ECC Unbuffered
Storage Expansion
SATA 6 x SATA III
M.2 1 x M Key 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
2 x M Key 2260, 2280, 22110 (PCIe 3.0 x4, PCIe 3.0 x2, SATA (Unspecified))
U.2 None
Optane Memory Support Yes
RAID Support RAID 0, 1, 5, 10
Internal I/O
Expansion Slots 1 x PCIe 4.0 x16
1 x PCIe 3.0 x16 (x4 mode)
2 x PCIe 3.0 x1
USB 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port)
1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)
2 x USB 2.0 Header (Supports 4 USB Type-A Port)
Multi-GPU Support 2-Way, Quad-GPU AMD CrossFireX
Air Cooling 1 x 4-Pin CPU
4 x 4-Pin System
Power Connectors 1 x 24-Pin Mainboard
1 x 8-Pin ATX
1 x 4-Pin ATX
Security TPM Module
LED Header 4 x RGB
Audio 1 x Speaker
1 x S/PDIF
Diagnostics Clear CMOS, Flash BIOS
Add-On 2 x Thunderbolt Card Header
Legacy 1 x Serial
BIOS
ROM 256 Mb
Front Panel I/O
I/O Connection Headers USB 3.1 / USB 3.2 Gen 1
Software
Supported Operating Systems Windows 10 (64-Bit)
Physical
Form Factor ATX
Dimensions 9.6 x 12.0″ / 24.4 x 30.5 cm
