SPECIFICATIONS
| MODEL NAME | LAN217X | LAN217W |
|---|---|---|

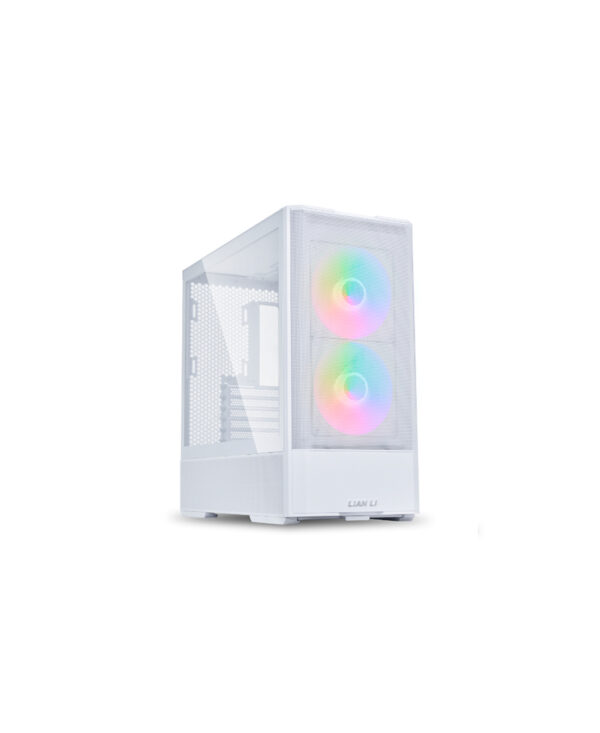

| COLOR | Black | White |
| DIMENSION | (D)482mm x (W)238mm x (H)503mm | |
| MATERIAL | Steel / 4.0mm Tempered Glass / Wood | |
| MOTHERBOARD SUPPORT | SSI-EEB(Width Max 330mm) / E-ATX（Width Max 280mm） ATX / Micro-ATX/Mini-ITX |
|
| BACK CONNECT MOTHERBOARD SUPPORT |
ATX / Micro-ATX | |
| PSU SUPPORT LENGTH | Standard Mode：ATX（Under 220mm）
Rotated Mode：ATX（Under 180mm） |
|
| FAN SUPPORT | Front: 170mm x 2 (Included) / 140mm x 3 / 120mm x 3 Top: 3 x 120mm / 2 x 140mm Above PSU Shroud: 3 x 120mm (2 Included) Under the PSU shroud: 2 x 120mm Rear: 1x 140mm(Included) / 1x 120mm |
|
| RADIATOR SUPPORT | Top: 360 / 280 / 240mm | |
| DRIVE SUPPORT | Back Connect Motherboard: 2 x 2.5″ SSD / 1 x 2.5″ SSD(behind MB) 2 x Drive Cage: 1 x 3.5″HDD+ 1 x 2.5″ SSD+(1 x 3.5″ HDD or 1 x 2.5″ SSD) PSU Shroud: 1 x 2.5″ SSD |
|
| GPU LENGTH CLEARANCE | 380mm (Max.) | |
| CPU HEIGHT CLEARANCE | 180mm (Max.) | |
| EXPANSION SLOT | 7 | |
| I/O PORTS | 2 x Power Button 2 x USB 3.0 1 x USB Type-C 1 x Audio |
|
| DUST FILTER | 1 x Bottom, 1 x Front | |
| Hub | ARGB / FAN Hub：6 x PWM FAN port 4 x 5V ARGB port |
|
| WARRANTY | 1 year(Fan: 3 years) | |
