| MODEL NAME |
SP750 |
| MODEL NO. |
SP750 BLACK / SP750 WHITE |
| Dimensions |
(D)100 mm X (W)63.5mm X (H)125 mm |
| Power supply design |
Fully modular |
| Color |
Black / White |
| Material |
Steel/brushed aluminum housing |
| Form factor |
SFX |
| Certification |
80 PLUS Gold |
| Max. DC Output |
750W |
| Combined +3.3V & +5V |
100W |
| Combined +12V |
744W |
| Input Voltage |
100 – 240 Vrms |
| Input Frequency Range |
50Hz – 60 Hz |
| PFC |
Active PFC (PF)>0.90 at full load |
| Efficiency |
91.89% Max |
| Protective Circuit |
OCP/ OPP/ UVP/ OVP/ OTP/ SCP |

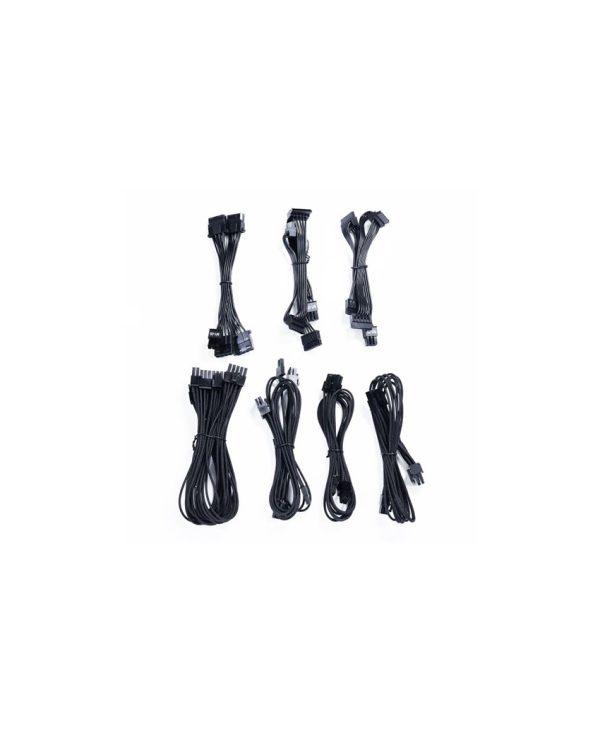

| Connectors |
1 x 24 / 20-Pin motherboard connector (300mm) x 1pcs 2 x 8 / 4-Pin CPU / ATX 12V connector (450mm-70mm) x 1 pcs 1 x 8 / 6+2 Pin PCIe connector (400mm) x 1pcs 2 x 8 / 6+2 Pin PCIe connector (400mm-120mm) x 1pcs 4 x SATA connector (120mm-120mm-120mm-120mm) x 2pcs 4 x 4-Pin Peripheral connector (120mm-120mm-120mm-120mm) x 1pcs |
| 750W FAN RPM |
1000-2800 RPM |
| Noise Level |
17.1-43.1 DBA |
| Bearing Type |
31.Fluid Dynamic Bearing (FDB) |
| Warranty |
5 years |
