Radeon™ RX 7600 XT GAMING OC 16G

Graphics Processing

Radeon™ RX 7600 XT
Core Clock

Boost Clock* : up to 2810 MHz (Reference card: 2755 MHz)
Game Clock* : up to 2539 MHz (Reference card: 2470 MHz)
Stream Processors

2048
Memory Clock

18 Gbps
Memory Size

16 GB
Memory Type

GDDR6
Memory Bus

128 bit
Card Bus

PCI-E 4.0
Digital max resolution

7680×4320
Multi-view

4
Card size

L=281.4 W=116.6 H=52.6 mm
PCB Form

ATX
DirectX

12 Ultimate
OpenGL

4.6
Recommended PSU

600W
Power Connectors

8 Pin*2

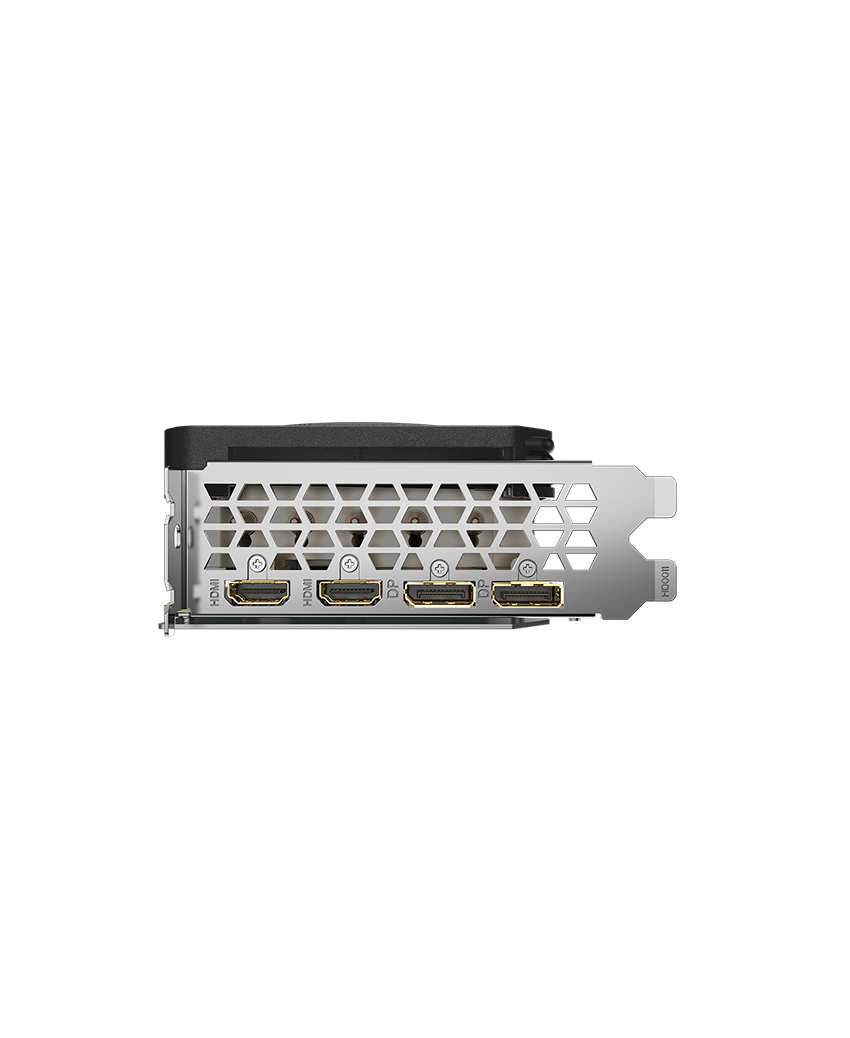

Output

DisplayPort 2.1 *2
HDMI 2.1a *2
Accessories

Quick guide
Note

* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.GD-151
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
