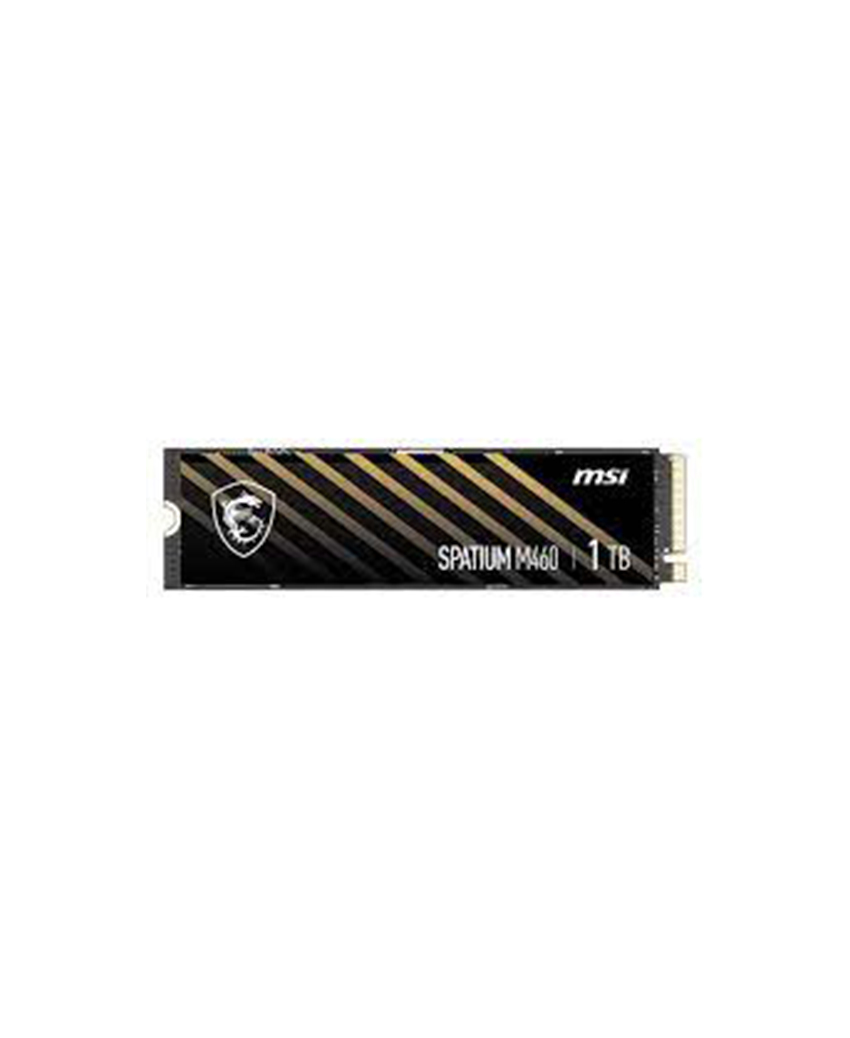

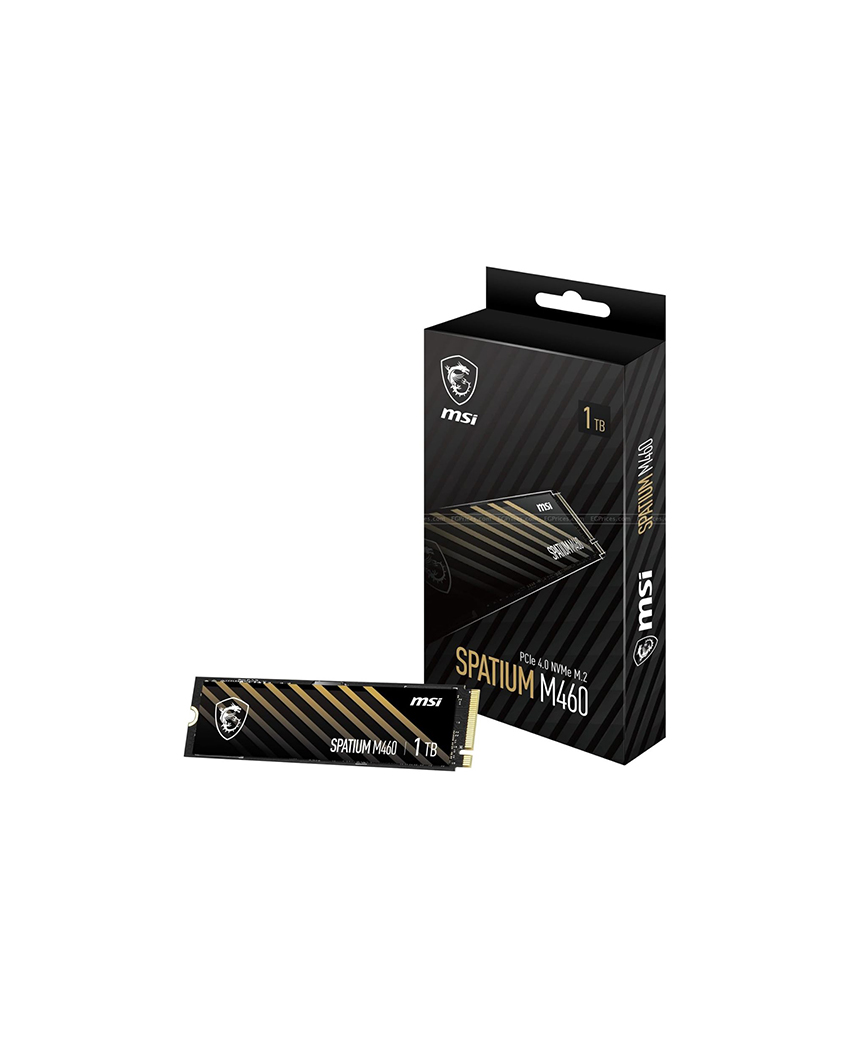

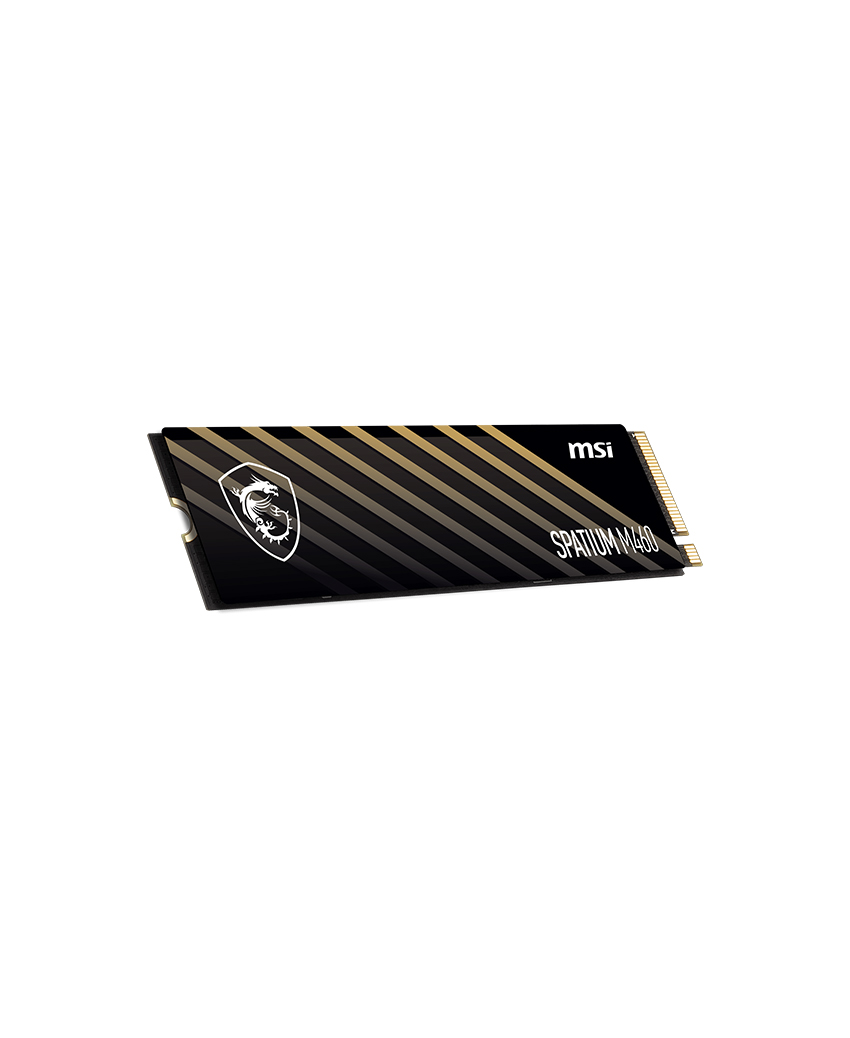

SPATIUM M460 PCIe 4.0 NVMe M.2

Model Name	SPATIUM M460 PCIe 4.0 NVMe M.2
Capacity	250GB	500GB	1TB	2TB
Controller	PHISON E21T
Flash Memory	3D NAND
Form Factor	M.2 2280
Interface	PCIe Gen4x4, NVMe 1.4
Compatibility	PCIe Gen4 / Gen3 / Gen2 / Gen1
Dimensions	80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to (MB/s)	4650	5000	5000	4900
Sequential Write up to (MB/s)	1900	3750	4500	4400
Random Read 4KB up to (IOPS)	220,000	440,000	550,000	525,000
Random Write 4KB up to (IOPS)	470,000	920,000	950,000	950,000
Maximum Operating Power (W)	3.6	4.0	4.3	5.2
Idle Power PS3 (mW)	50
Low Power L1.2 (mW)	5
Operating Temperatures	0°C – 70°C
Storage Temperatures	-40°C – 85°C
Terabytes Written (TBW)	200	300	600	1200
Mean Time Between Failure (MTBF)	Up to 1,500,000 Hours
Limited Warranty	5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
Advanced Features	TRIM (Performance Optimization, OS Support required) SMART (Self-Monitoring, Analysis and Reporting Technology) LDPC (Low Density Parity Check) ECC Algorithm End to End Data Path Protection APST (Autonomous Power State Transition) Pyrite (Encryption, Data Security)
